SHS DIAMOND Series Wall Mount Adjustable 5° Short Back Plate Hinge DMD915S

The main difference of SHS Diamond Series Hinges is that they are smaller in size, which helps create more open-glass space, and make your shower door look invisible, because these hinges are not as noticeable and eye-catching as hinges of other SHS Series.

SHS DIAMOND Series Wall Mount Short Back Plate Hinge is made of solid brass with all moving parts: pins and springs. It is Self-centering door hinge with the mechanism that functions when the shower door is in the range of 15 degrees of the closed position.

SHS DIAMOND Series Wall Mount Short Back Plate Hinge is designed for use with 3/8” – 1/2” Tempered Safety Glass. These Hinges are smaller-size and are a great solution if you want to see more open glass-space in your shower. All SHS Hinges have 3-year warranty, because we are sure in their durability.

Different finishes are available to create desired look for your bathroom.

SKU: DMD91S-1 Categories: Shower Hardware, Shower Hinges Tag: Diamond Series

[Login To See Prices]

Self-Centering
Different colors are available
Wall Mount Short Back Plate
Quick and Easy Installation
Includes Gaskets, Stainless Steel Mountain Screws
Fits 3/8″ to 1/2″ (10 to 12 mm) Tempered Glass
Different Finishes are available
3 Year Warranty

SHS DIAMOND Series Wall Mount Short Back Plate Hinges are designed for residential and hotel shower use.

Sometimes you can face the situation when you have to use more hinges for more support. For example, if you use 2 hinges of this kind, with 3/8” to 1/2” glass, then the hinge will hold up to 110lb with the door with up to 36”. If you use 3 hinges with 3/8” to 1/2” glass, the hinge will be able to hold 140lb. with a door width up to 36”.

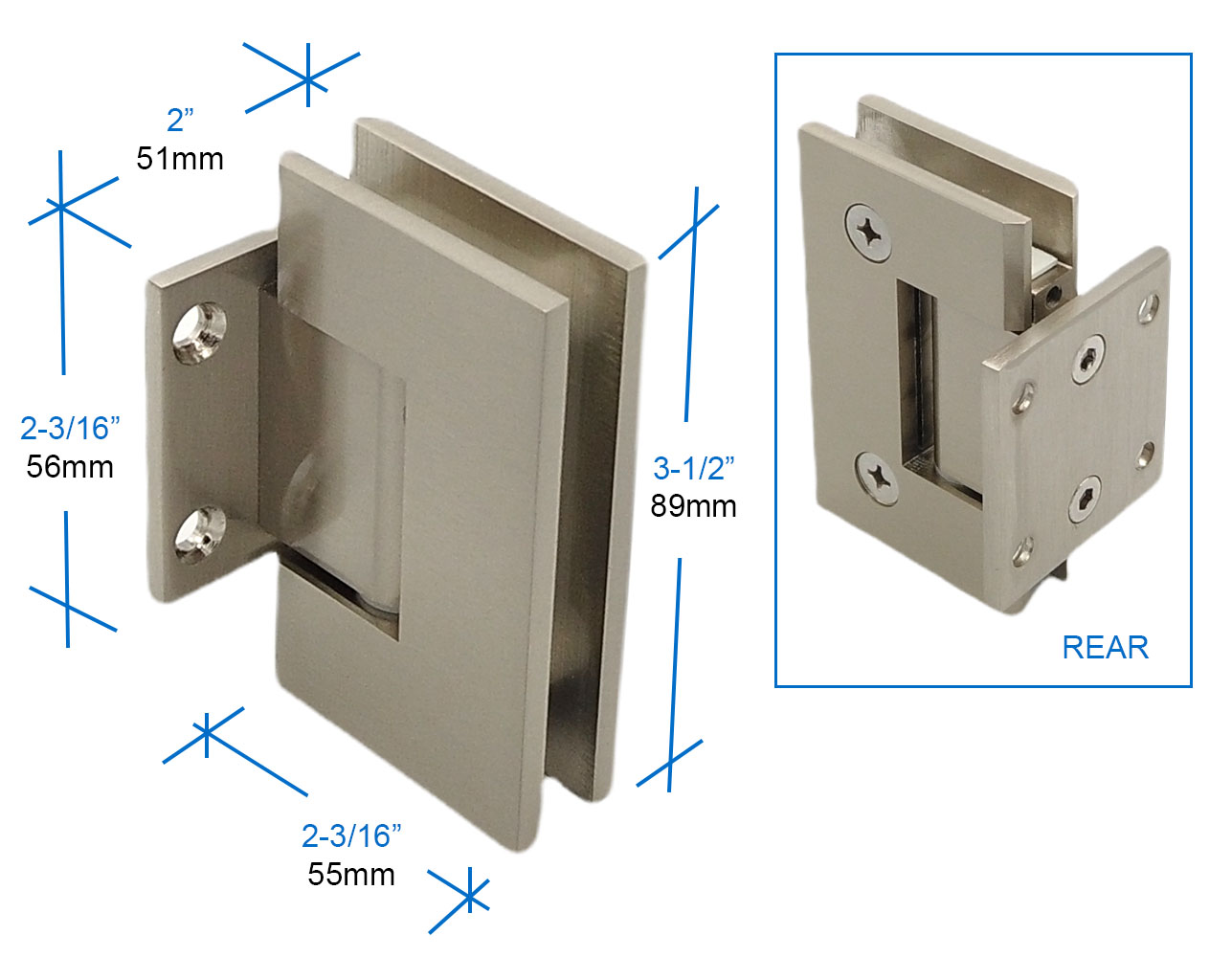

Product Specifications:

Height: 3-1/2″

Width: 2″

Weight: 2lb

Material: Solid Brass

Glass Thickness: 3/8” to 1/2” Tempered Safety Glass

Type of Closing: Self-Centering withing the range of 15 degree of closed position.

Swings: 90 degree in and 90 degree out

Includes: Gaskets and Screws.

SHS DIAMOND Series Wall Mount Short Back Plate Hinges fit 3/8” to 1/2″ glass. These Hinges are Self-Centering and contain a Reversible 5 Degree Pivot Pin. Made of solid brass with parts in stainless steel.

The template for Glass Fabrication is down below:

SHS Part Numbers: DMD915S
DMD915S-CH – Polished Chrome
DMD915S-BN – Brushed Nickel
DMD915S-MB – Matte Black
DMD915S-SB – Satin Brass

Compare to: GEN574
GEN574CH – Polished Chrome
GEN574BN – Brushed Nickel
GEN574MBL – Matte Black
GEN574SB – Satin Brass

DOWNLOAD TEMPLATE:
